Membrane Switch
Production Information

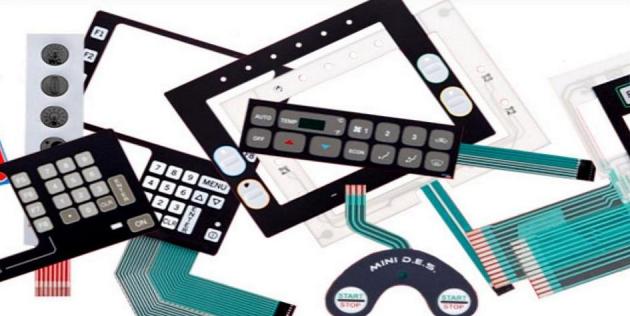

Custom Membrane Switches
TSI will custom design and produce a membrane switch to meet the customer’s specific requirements and needs. We supplies a wide variety of custom membrane switches, including metal dome tactile membrane switches, non-tactile membrane switches, plastic dome tactile membrane switches, and membrane switch panel line with embedded LEDs... TSI welcome the opportunity to assist you in the design and manufacture of your membrane switch.
Assembly Options
TSI's manufacturing capabilities include an array of options to give customers complete membrane switch assemblies. We can bring all the necessary parts and components together to create a finished product that meets your requirements: the membrane switch itself, a PCB to control its functions, a custom panel to support the switch and PCB, the exterior casing, LED lights, fully installed wiring, mounting brackets, and more. TSI will work with you to devise the perfect custom membrane switch assembly solution.
Typical Membrane Switch Specifications
RFQ Photo Gallery
TSI will custom design and produce a membrane switch to meet the customer’s specific requirements and needs. We supplies a wide variety of custom membrane switches, including metal dome tactile membrane switches, non-tactile membrane switches, plastic dome tactile membrane switches, and membrane switch panel line with embedded LEDs... TSI welcome the opportunity to assist you in the design and manufacture of your membrane switch.
Assembly Options
TSI's manufacturing capabilities include an array of options to give customers complete membrane switch assemblies. We can bring all the necessary parts and components together to create a finished product that meets your requirements: the membrane switch itself, a PCB to control its functions, a custom panel to support the switch and PCB, the exterior casing, LED lights, fully installed wiring, mounting brackets, and more. TSI will work with you to devise the perfect custom membrane switch assembly solution.
Typical Membrane Switch Specifications
| Environmental | Operating Temperature | -40°C to +80°C (-40°to 176°F) |
| Storage Temperature | -40°C to +85°C (-40°to 185°F) | |
| Humidity | 40°C, 90% to 95% for 240 hours | |
| Vibration | 20G's max. | |
| Mechanical | Operating Force | Non-tactile 60g to 300g (2oz to 10oz) |
| Tactile 150g to 400g (6oz to 14oz) | ||
| Switch Stroke | Non-tactile 0.1 to 0.5mm | |
| Tactile 0.6 to 1.5mm | ||
| Life Expectancy | Non-tactile >5 million actuations | |
| Tactile >1 million actuations | ||
| Electrical | Operating Voltage | 35 volts maximum |
| Operating Current | 10 micro amps to 100 milliamps, resistive | |
| Operating Power | 1 watt maximum | |
| Circuit Resistance | 10 ohms to 500 ohms, dependent on size and layout | |
| Insulation Resistance | 100M ohms at 100V DC | |
| Dielectric Withstand | >250 VRMs (50-60Hz 1 minute) | |
| Contact Bounce | ≤ 5 milliseconds | |
| Circuitry | X-Y matrix or one side common |
